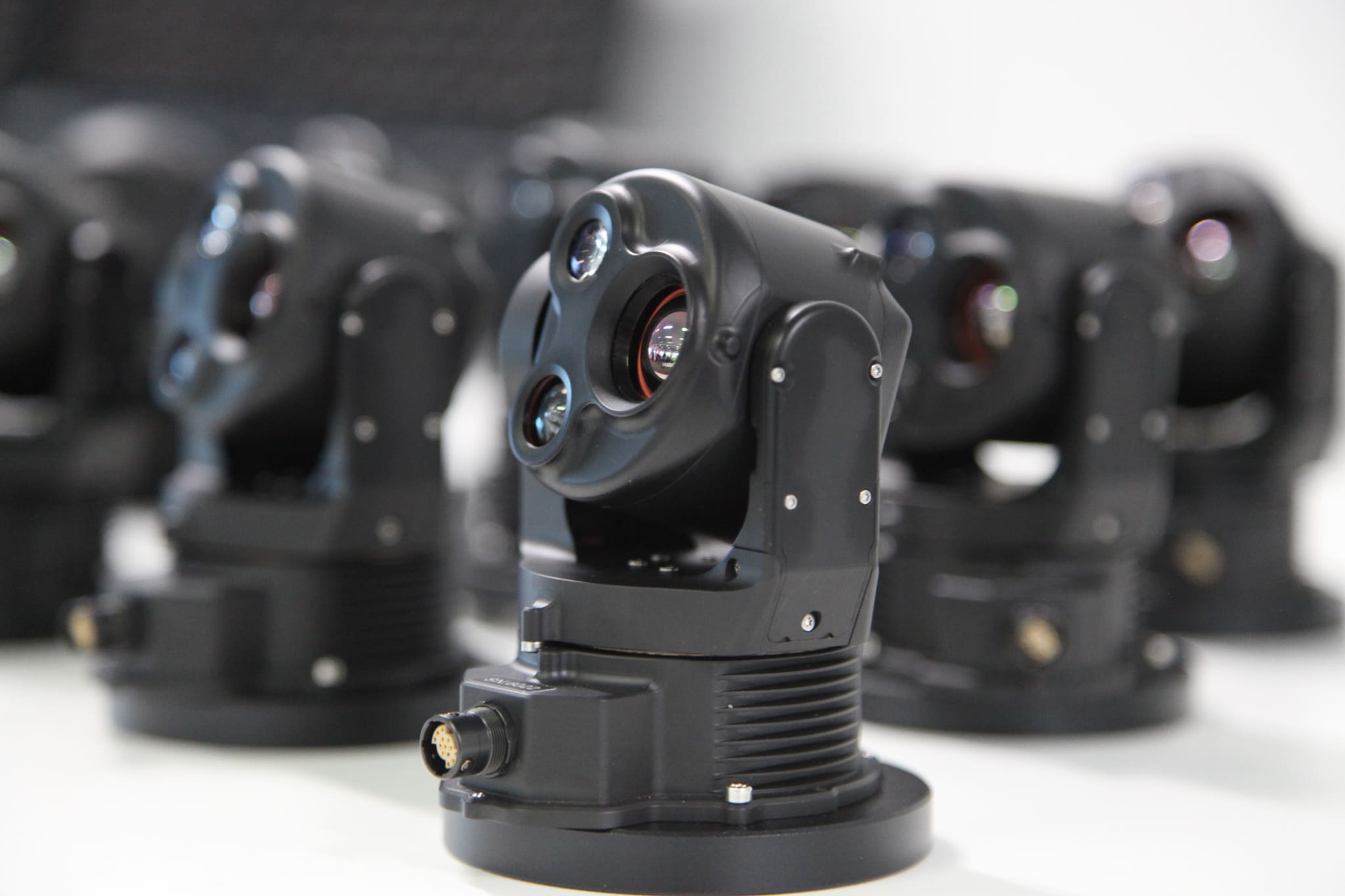

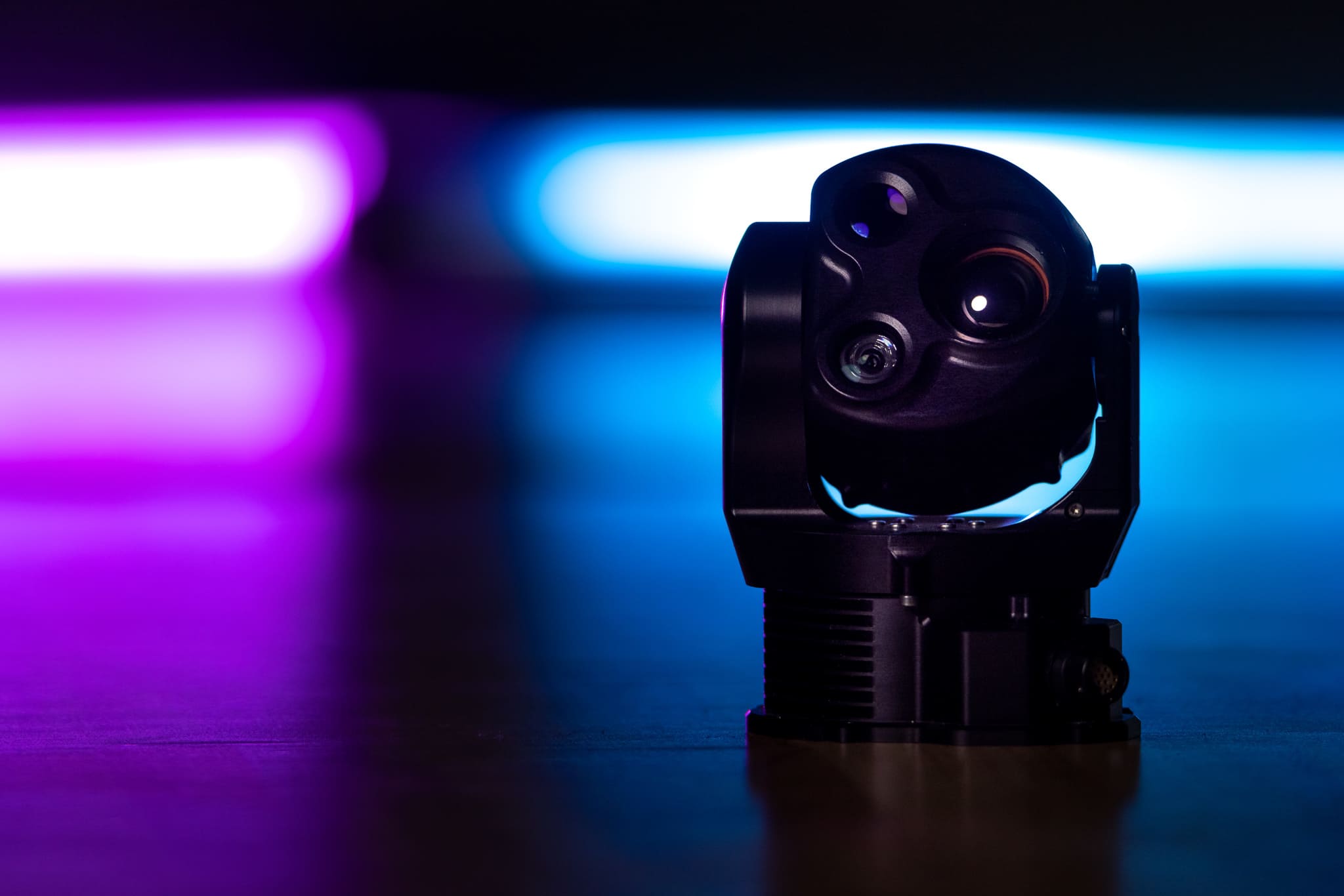

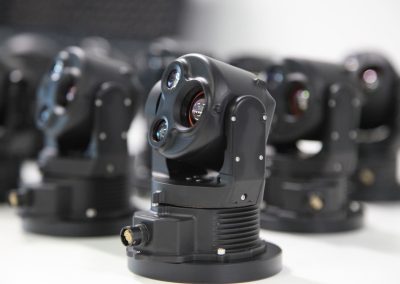

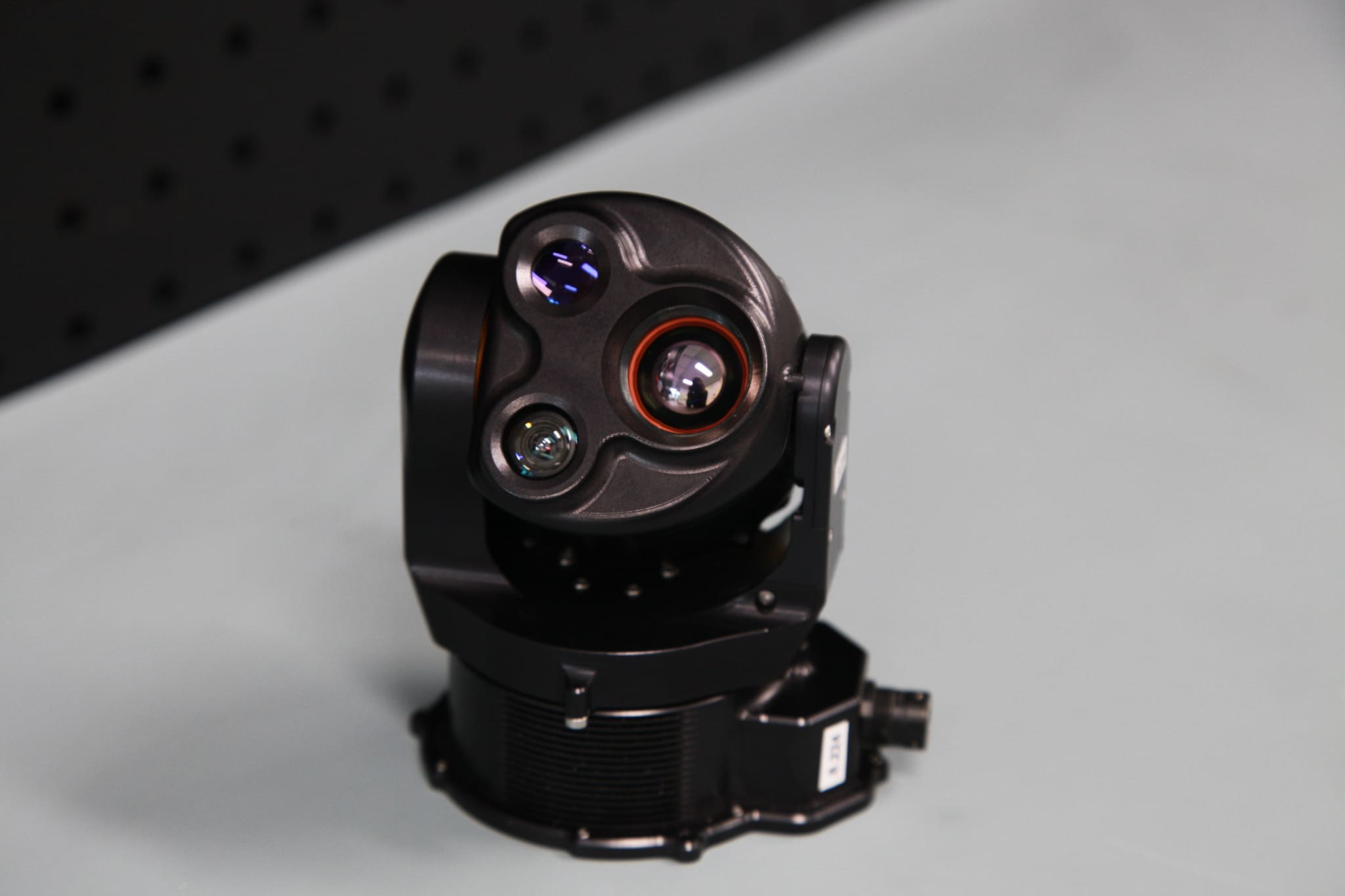

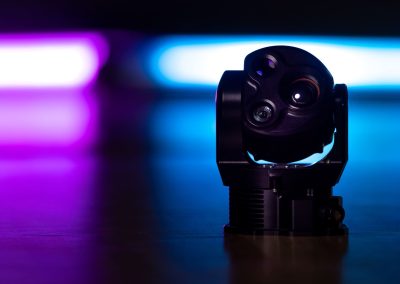

CM62 Micro Gimbal

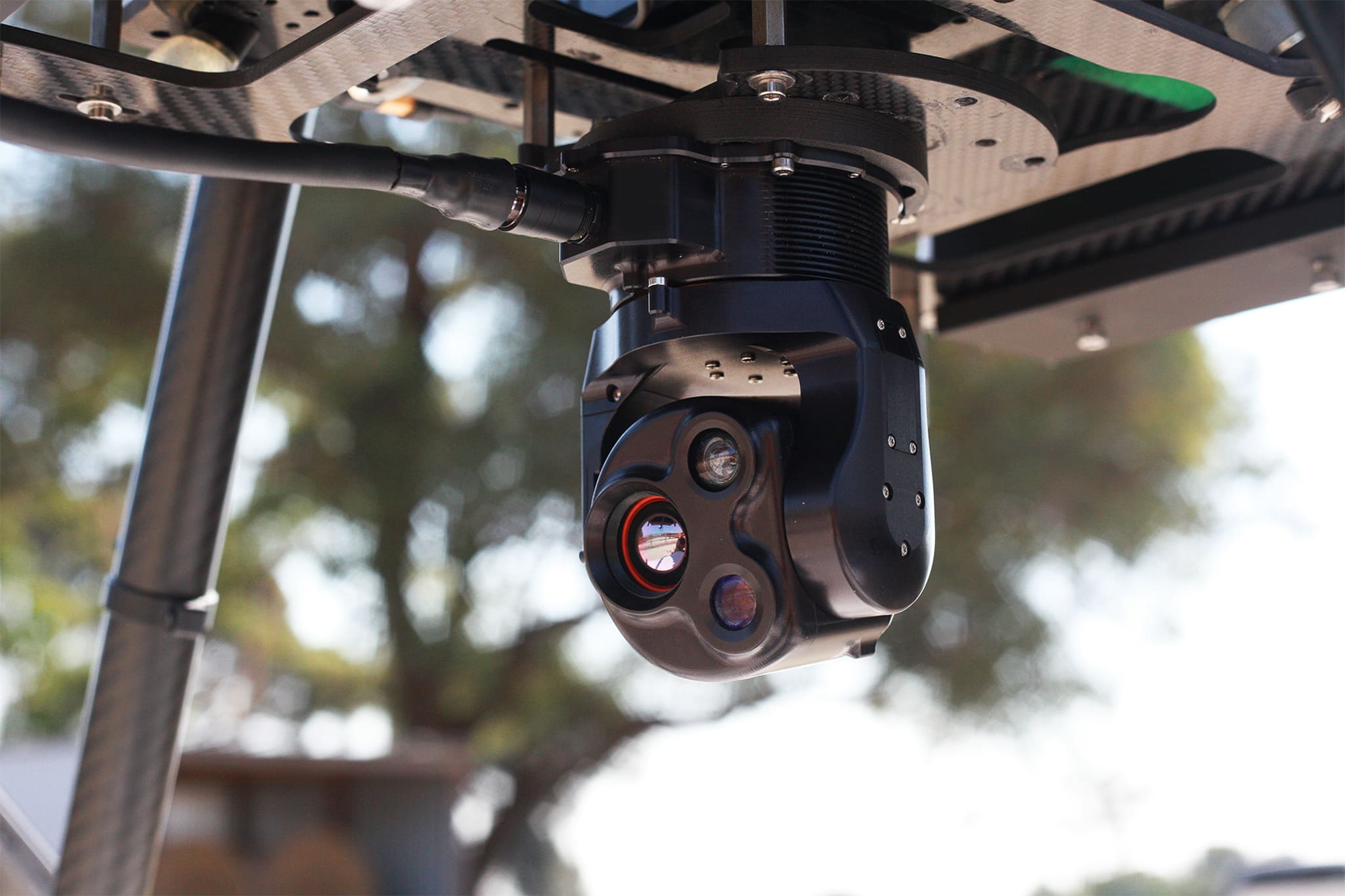

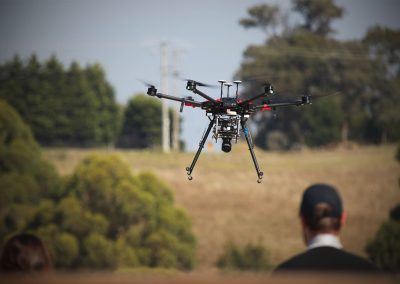

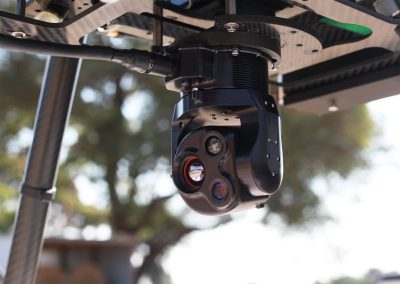

Designed for integration into small uncrewed aerial systems (sUAS), the CM62 Micro Gimbal is an innovative multi-sensor gyro-stabilised imaging system for intelligence, surveillance, and reconnaissance (ISR) operations. Now with on-gimbal automated object recognition, the CM62 empowers the operator to detect and identify targets with greater precision for mission success.

Situational awareness at day and night – Combining high-resolution electro-optical (EO) capability with 50x zoom, and long-wave infrared (LWIR) with digital zoom, the CM62 delivers long-range intelligence both day and night.

260g total weight – With on-board video processing and a compact total system weight of 260g, the CM62 keeps payload weight low to enable longer flight duration. On-board video processing features include object tracking, scene tracking, roll stabilisation, e-stabilisation, multi-sensor streaming, and H.265 encoding, enabled with advanced Altitude Control and GEO-lock control functionality.

On-Gimbal Automated Object Recognition – AVT Australia’s on-gimbal automated object recognition speeds up decision making to allow the operator to focus on the important things, reducing operator workload and increasing mission autonomy. This feature highlights both stationary and moving objects on screen for easier recognition during an ISR mission.

Reliable Operation – For reliability in all-weather conditions and environments, the CM62 is ruggedised to an IP67 rating.

Features

260g total weight with onboard video processing and on-gimbal automated object recognition
Compatible with MAVLink
EO with 50x zoom
LWIR with digital zoom
Rugged Aluminium Design with an IP67 Dust and Immersion Protection rating
H.265 & H.264 Encoding
ITAR Free

Suitable Missions

Aerial ISR and Target Acquisition
Border Protection
Force Protection
Law Enforcement
Search and Rescue
Emergency Response
Bushfire Management
Wildlife Management

The CM62 Family is MAVLink Compatible

The CM62 Micro Gimbal family is compatible with MAVLink for quicker and easier integration onto your platform, saving you time to focus on the more important things.

To make things even better, autopilot and payload can be controlled from the same tablet to make managing your mission even easier.

On-Gimbal Automated Object Recognition as Standard Feature on CM62 Gimbals

On-gimbal object recognition speeds up decision making to allow the operator to focus on the important things, therefore reducing operator workload and increasing mission autonomy.

This feature highlights both stationary and moving objects, such as people, vehicles, aircraft, and boats, on screen for easier recognition during an ISR mission. The CM62 sets a new standard in ISR payloads by combining the CM62’s high-quality imagery with automated object recognition in an IP67-rated 260g payload.

All processing is performed 100% on the gimbal, with no additional hardware required. As a standard feature on the CM62, there is no additional cost.

CM62 Configurations

Tri-Zoom EO

The CM62 Tri-Zoom configuration is designed for situations when enhanced EO imagery is required for daytime operations. The Tri-Zoom EO configuration has an intermediate lens for enhanced mid-range performance and a longer focal-length narrow lens, resulting in more pixels on target compared to the standard CM62 configuration. The system is configurable to either a single stream continuous zoom or dual stream.

Standard

The CM62 Micro Gimbal combines high-resolution EO and LWIR capabilities in a miniature 260g system. The CM62 incorporates on-board video processing to provide high-quality imagery and on-gimbal automated object recognition to speed up operator decision making. For reliability in all-weather conditions and environments, the CM62 is ruggedised to an IP67-rating.

LWIR+

The CM62 LWIR+ configuration is designed for situations where extended standoff distances are required, allowing the operator to maintain a safe stand off distance while achieving long-range DRI. The LWIR+ configuration has an 18° HFOV, resulting in 84% more pixels on target than the standard CM62 configuration.
